Compact Range based on SilentRIM™ Lens
Ascan CRL series compact range is based on SilentRIM™ Lens which provides equivalent performance compared to conventional rolled back reflector compact range with low cost and large quiet zone. Paired with Ascan roll over azimuth spherical positioner. It provides a turnkey solution ideal for over the air, passive antenna and RF immunity qualification and test. Frequency cover wide range from radio frequency to millimeter wave frequency.
Features
- Cover from 8GHz to mmWave frequency range up to 50GHz
- Full spherical scan capability
- Automatic scan and control setup
- Paired with optional viewing and analysis software
- 3D and 2D radiation pattern
Typical Applications
- Over the air test platform
- Electronic warfare and jamming test bed
- General broad pattern antennas
- RCS test platform
- Millimeter wave Antennas and arrays
Typical quite zone cross section (amplitude)

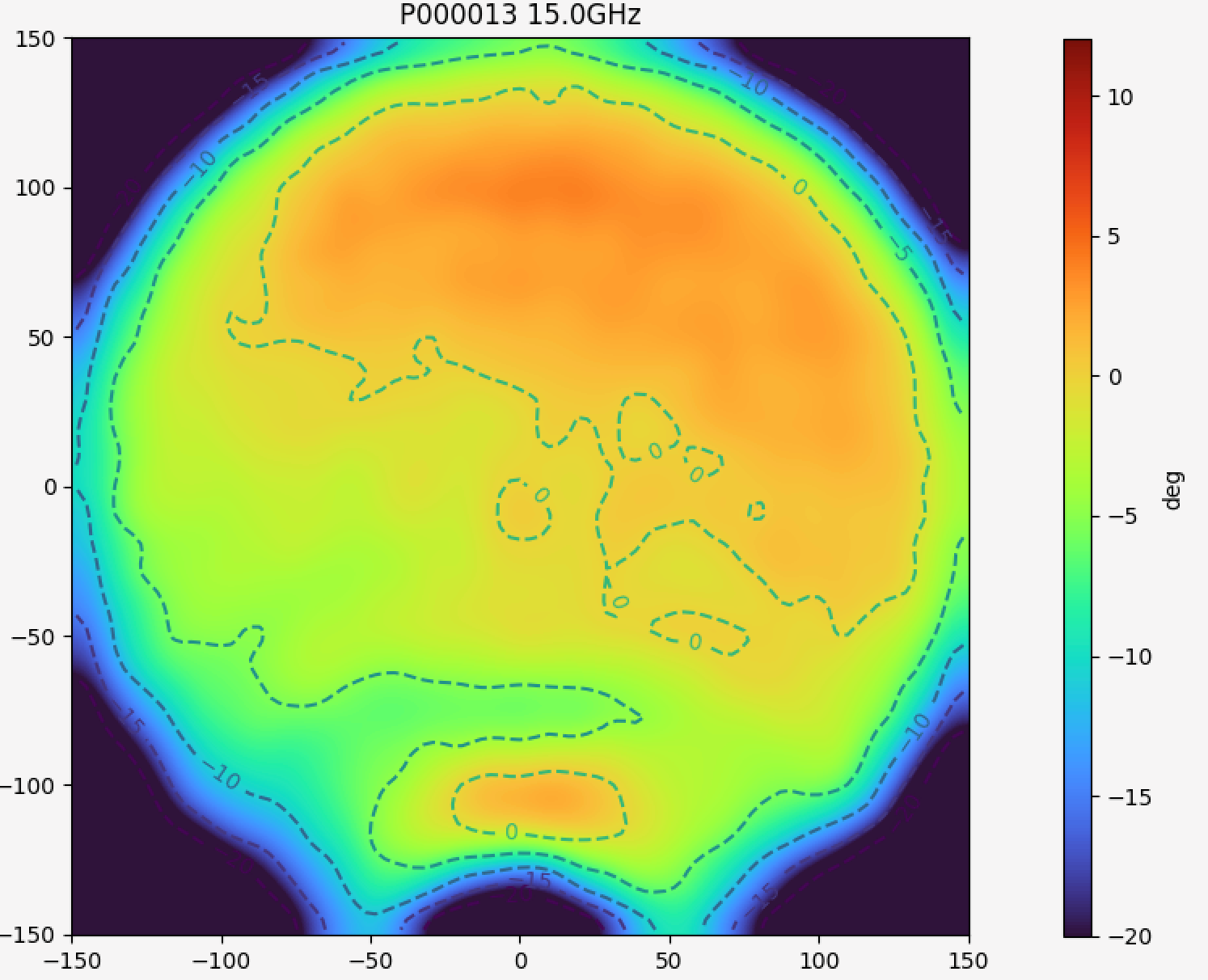

Typical quite zone cross section (phase)
